HICLOVER Small-Capacity Top-Loading Incinerators: TS10, TS20, TS30 Series Overview

The HICLOVER TS10, TS20, and TS30 incinerators form a compact, reliable, and globally applicable series designed around the convenience and efficiency of a top-loading (top open door) structure. For organizations that require small daily disposal capacities―such as clinics, farms, laboratories, mobile field units, or temporary installations―this top-loading series offers a simple, safe, and effective solution for the destruction of light solid waste, biological residues, small animal remains, and general non-hazardous waste.

1. Why Top-Loading Matters: The Core Advantage

The defining feature of the TS10 / TS20 / TS30 models is the top open door, which allows operators to load waste vertically into the primary chamber. This design delivers several operational strengths:

• Gravity-assisted loading, especially for lightweight or irregular waste

• Reduced heat escape, improving safety during mid-cycle loading

• Simplified workflow, avoiding pushing, compressing, or raking waste

• Better control in narrow or improvised working spaces

• Lower operator exposure to heat and fumes

For small-capacity waste volumes, the top-loading design ensures faster preparation, less manual handling, and a more intuitive operating method suitable for non-technical staff.

2. Overview of the TS10, TS20, and TS30 Models

Although part of the same top-loading family, each model serves a different small-capacity requirement. Engineering consistency ensures uniform performance standards across the series.

TS10 C Ultra-Compact Top-Loading Incinerator

• Approximate primary chamber volume: 110 liters

• Typical loading capacity: 8C10 kg per batch

• Burner type: Italy-made diesel burner (Riello FS10)

• Primary chamber temperature: 800C900°C

• Secondary chamber temperature: 1000C1200°C

• Ideal for: small clinics, labs, veterinary micro-sites, mobile units

TS20 C Standard Small Facility Model

• Primary chamber volume: 220 liters

• Loading capacity: 15C20 kg per batch

• Burner type: Riello FS10 depending on fuel option

• Typical temperatures: same as TS10, capable of continuous cycles

• Ideal for: rural clinics, research stations, small farms, humanitarian camps

TS30 C Enhanced Small-Capacity Unit

• Primary chamber volume: 330 liters

• Loading capacity: 25C30 kg per batch

• Burner type: Riello FS10 for diesel or gas models

• Higher chamber height for bulkier waste batches

• Ideal for: regional health posts, field hospitals, poultry farms, isolated communities

Across all three models, the top open door ensures easy placement of waste from above, particularly for paper waste, plastic packaging, lightweight medical waste, and small carcasses.

3. Core HICLOVER Functional Features

All HICLOVER top-loading incinerators share a consistent engineering foundation designed for long-term reliability:

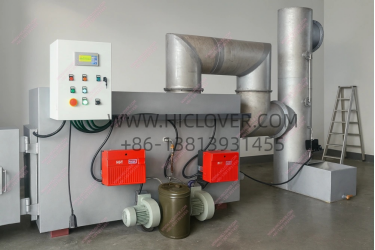

• Dual combustion system with primary chamber oxidation and secondary chamber gas re-burning

• Digital or PLC-based temperature display and burner sequencing

• High-quality refractory bricks and castable insulation

• Thermocouple temperature monitoring for both chambers

• Automatic ignition and flame control

• Support for diesel, LPG, or natural gas burners

• Stainless-steel chimney options, with or without wet scrubber

• Low installation requirement, ideal for rapid deployment

These features ensure stable burning cycles, clean flue gas, and low maintenance requirements―crucial for remote or resource-limited sites.

4. Mobile Deployment Configurations

The TS10 / TS20 / TS30 series is especially well-suited for mobility, making it a preferred choice for NGOs, emergency missions, and field laboratories.

Trailer-Mounted Version

Suitable for veterinary services, rural medical teams, municipal inspection units, and rapid environmental response.

Containerized Mobile Incinerator

Installed inside a 20ft container, with chimney ports, ventilation systems, lighting, and optional fuel tanks. Ideal for UN field missions, refugee camps, or remote industrial sites.

Skid-Mounted Frame

Designed for simple forklift relocation within factories, mining camps, construction zones, or agricultural facilities.

Rapid Field Deployment Unit

A lightweight, simplified package optimized for emergency medical camps, outbreak-control stations, and mobile laboratories.

The top-loading system improves usability in all mobile setups because vertical access remains consistent even when ground conditions vary.

5. Expanded Use Scenarios Across Different Sectors

Medical Waste (Small Health Facilities)

The TS10/TS20/TS30 series handles:

• infectious waste, PPE, dressings

• light clinical waste, cotton, paper, small syringes

• Waste loads typically generated by small clinics or rural health posts

The top-loading design helps operators quickly drop waste into the chamber without handling.

Veterinary and Poultry Operations

Farm sites often generate carcasses or organic residues. The top open door makes it easier to load:

• small animal remains

• poultry by-products

• contaminated bedding or packaging

Research Laboratories

The models safely dispose of:

• biological samples

• culture plates

• paper and packaging waste

Humanitarian and Field Camp Operations

The small size and mobile versions fit the needs of:

• refugee camps

• UN mission support bases

• rapid medical deployment

• emergency-response teams

Commercial and Light Industrial Use

Ideal for:

• workshops

• hotels and lodges

• small manufacturing sites

• eco-lodges in remote zones

6. Why the TS10 / TS20 / TS30 Series Stands Out

The HICLOVER small-capacity top-loading series is widely adopted because it offers:

• Simple operation with top open door convenience

• Stable combustion temperatures (up to 1200°C)

• Low fuel consumption with high thermal insulation

• Compact size suitable for indoor or outdoor installation

• Strong compatibility with mobile solutions

• Durable construction for long-term use

These advantages make the series an ideal choice for organizations seeking a reliable, compact, and efficient top-loading incinerator with proven performance in real-world field conditions.
